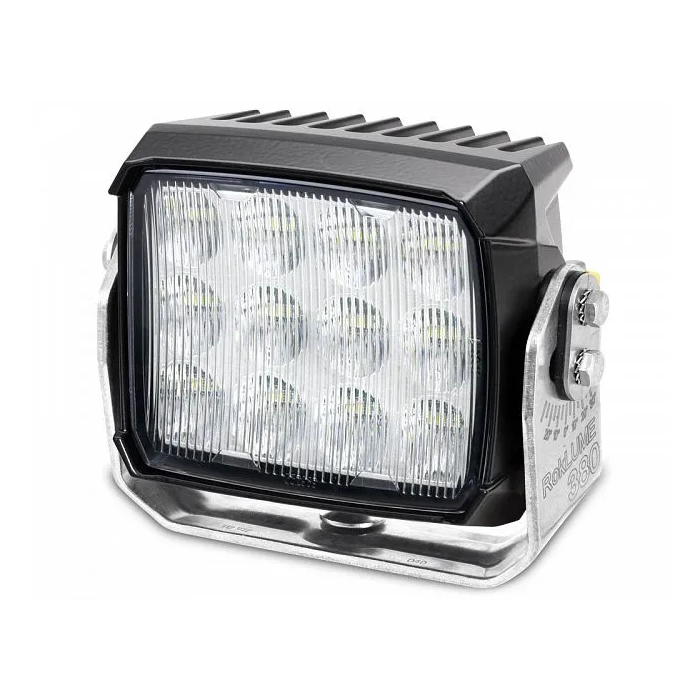

Hella 1GA996197011 RokLUME 380 LED Work Lamp - Close Range Heavy Duty

Hella 1GA996197011 RokLUME 380 LED Work Lamp - Close Range Heavy Duty

LED-Worklight - RokLUME 380N - 24V - 7800lm - mounting/Screw Connection - Swivelling Mounting Bracket - Short distance lighting - Cable: 301mm - Plug: DEUTSCH plug

The RokLUME 380 was developed for applications with particularly high lighting requirements. The enormous light output of up to 7,800 lumens provides more than twice as much light as a comparable xenon headlamp. In addition to the standard light distributions for close-range and long-range illumination, the RokLUME 380 is also available in the innovative glare-free illumination variant ZEROGLARE. This is a special illumination with lens optics. Oncoming vehicles are not dazzled and safety and working comfort are thus significantly increased. The 12 high-performance LEDs produce homogeneous illumination with a colour temperature of 5,000 Kelvin. This enables working conditions similar to daylight to be created even in very dark working conditions, and contrasts and colours to be perceived better, making it much easier for the human eye to perceive the senses and prevent eye fatigue. The RokLUME 380 is optimally suited for the toughest operating conditions. In addition to the shatterproof polycarbonate cover lens, the aluminium housing is coated with a particularly robust NanoSafe coating, ensuring the headlamp is well protected against external mechanical influences such as stone chips, water and salt. The RokLUME 380 is hermetically sealed and therefore watertight, submersible and resistant to high-pressure cleaning. The heavy-duty recirculating bracket and the innovative Nord-Lock screw system keep the headlamp in the right position at all times, even with strong vibrations. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with fluctuating operating voltages of 20 to 32 volts. Temperature sensors protect against overheating.

Features

• Lamp Type: LED - Number of LEDs: 12 - Power consumption: 84W - Colour Temperature: 5000K
• Patterned diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K8
• Aluminium Housing - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Width: 179mm - Height: 148mm - Depth: 102mm

Specifications

• Part number: 1GA996197011
• Hella number: 1GA 996 197-011
• Barcode (EAN): 9002920156530
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: Swivelling Mounting Bracket
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Height: 148 mm
• Width: 179 mm
• Depth: 102 mm
• Light Distribution: Short-Range Illumination
• fulfils ECE standard: R10
• fulfils test standard: RCM
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP6K8 / IP6K9K
• Luminous Flux: 7800 lm
• Colour Temperature: 5000 K
• Number of LEDs: 12
• Power Consumption: 84 W
• Cable Length: 301 mm
• Housing Type: Aluminium Housing
• Housing Colour: black
• Lens Material: PC (Polycarbonate)
• Lens Type: patterned lens
• Product line: RokLume 380N

Assy./disassy. by qualified personnel required!
